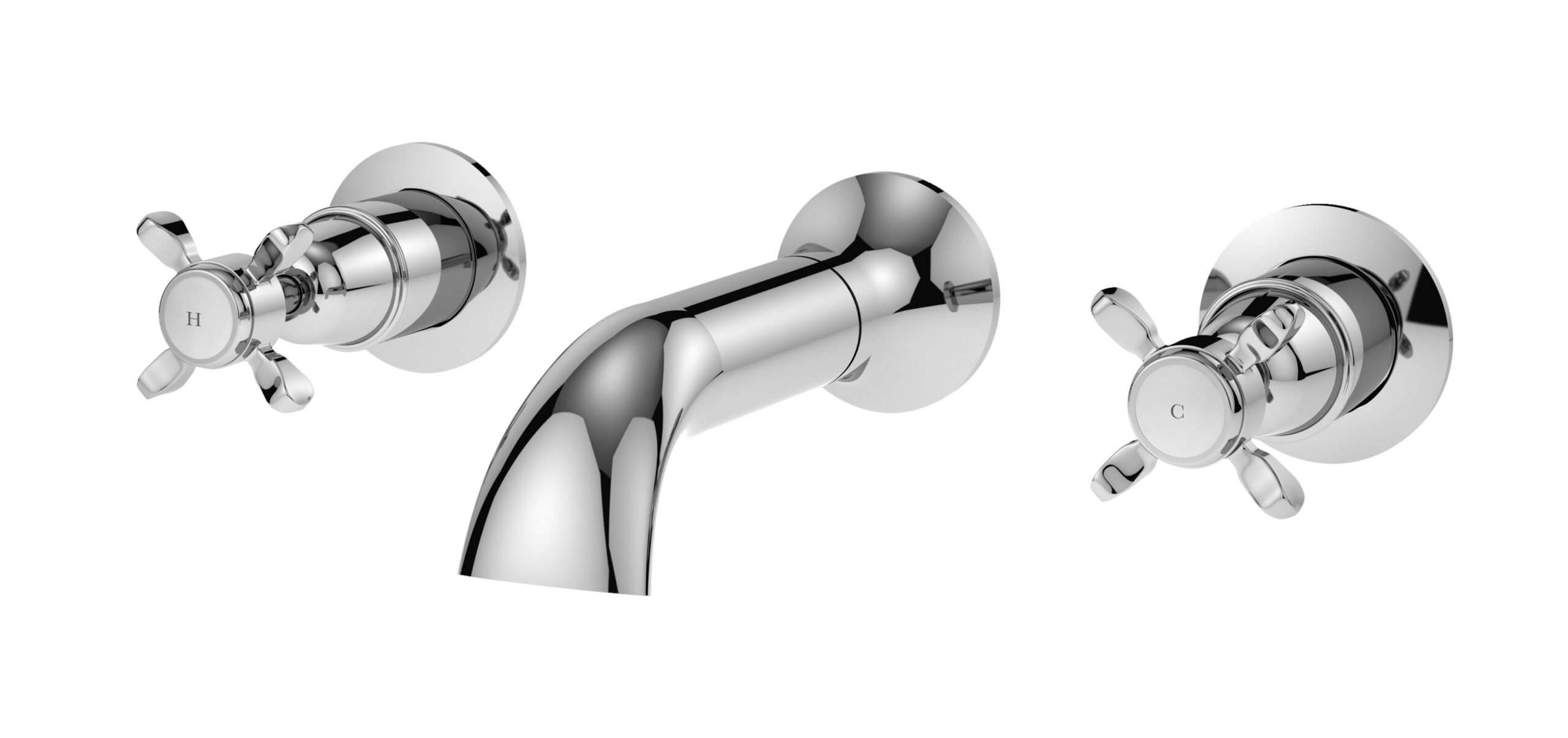

Classic crosshead with ceramic detailing. Manufactured from high quality brass. Excellent flow rates – even at low pressures. 1/4 turn ceramic disc technology for long life and smooth operation.
SKU:
SEL309DX
£315.00
20 in stock
15
People watching this product now!
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Weight | 2.5 kg |
---|---|
Dimensions | 270 × 185 × 85 cm |
Range |
Selby |
Style |
Traditional |
Guarantee |
5 Years |
Material |
Brass |
Color |
Chrome |
Waste Included |
No |
Mount Type |
Wall Hung |
Minimum Operating Pressure (Bar) |
0.5 Bar |
Valve/Cartirdge Type |
1/4 Turn Ceramic Disc |
WRAS Approved |
No |
WRAS Approval Number |
N/A |
TMV2 Approved |
No |
TMV2 Approval Number |
N/A |
TMV3 Approved |
No |
TMV3 Approval Number |
N/A |
Flow Rate at 0.1 Bar (L/min) |
9.6000 |
Flow Rate at 0.5 Bar (L/min) |
20.0000 |
Flow Rate at 1 Bar (L/min) |
28.0000 |
Flow Rate at 2 Bar (L/min) |
39.5000 |
Flow Rate at 3 Bar (L/min) |
46.8000 |
Tap Holes Required |
3 |
Tap Spout Projection |
192.0000 mm |
Shipping Load Type |
Standard Parcel |
Rated 0 out of 5
0 reviews
Rated 5 out of 5
0
Rated 4 out of 5
0
Rated 3 out of 5
0
Rated 2 out of 5
0
Rated 1 out of 5
0
Be the first to review “3th wall bath filler” Cancel reply
Additional information
Weight | 2.5 kg |
---|---|
Dimensions | 270 × 185 × 85 cm |
Range |
Selby |
Style |
Traditional |
Guarantee |
5 Years |
Material |
Brass |
Color |
Chrome |
Waste Included |
No |
Mount Type |
Wall Hung |
Minimum Operating Pressure (Bar) |
0.5 Bar |
Valve/Cartirdge Type |
1/4 Turn Ceramic Disc |
WRAS Approved |
No |
WRAS Approval Number |
N/A |
TMV2 Approved |
No |
TMV2 Approval Number |
N/A |
TMV3 Approved |
No |
TMV3 Approval Number |
N/A |
Flow Rate at 0.1 Bar (L/min) |
9.6000 |
Flow Rate at 0.5 Bar (L/min) |
20.0000 |
Flow Rate at 1 Bar (L/min) |
28.0000 |
Flow Rate at 2 Bar (L/min) |
39.5000 |
Flow Rate at 3 Bar (L/min) |
46.8000 |
Tap Holes Required |
3 |
Tap Spout Projection |
192.0000 mm |
Shipping Load Type |
Standard Parcel |
Reviews (0)
Rated 0 out of 5
0 reviews
Rated 5 out of 5
0
Rated 4 out of 5
0
Rated 3 out of 5
0
Rated 2 out of 5
0
Rated 1 out of 5
0
Reviews
Clear filtersThere are no reviews yet.
Be the first to review “3th wall bath filler” Cancel reply
Description
Classic crosshead with ceramic detailing. Manufactured from high quality brass. Excellent flow rates – even at low pressures. 1/4 turn ceramic disc technology for long life and smooth operation.
